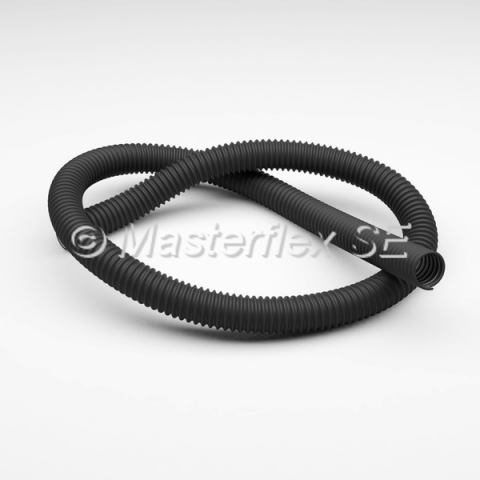

Miniflex TPV se
Application
- protection hose for increased temperatures in:
- switchgear construction
- switch cabinets
- mechanical engineering
- robotics
- vehicle construction
- suction hose for increased temperatures
- cable protecting hose
Properties
- meets system of protection IP68, as per EN 60 529
- hardly inflammable, V-0 acc. to UL 94
- resistant to oil and fuels
- good chemical resistance
- generally good UV and ozone resistance
- resistant to ageing
- extremely flexible
- bend radius = outer diameter
- extremely lightweight
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
2.9
Product Description
TPV protecting and suction hose, lightweight and very flexible, hardly inflammable
Material
hose wall: 100% thermoplastic vulcanisates (TPV)
spiral: spring steel wire,TPV coated
Temperature Range
- -40°C up to +130°C
- intermittent to +150°C
Construction
- spring steel spiral TPV coated
- hose wall: thermoplastic vulcanisates with wall thickness from 0.3 - 1.2 mm according to DN
