Miniflex PVC

Application

  • protection and suction hose for solid, liquid and gaseous media
  • suction hose for fine grained particles, e.g. dust, powder, fibres
  • ventilation (vacuum and low pressure)
  • protection hose against mechanical loadings
  • cable protecting hose

Properties

  • extremely flexible
  • lightweight
  • can be axially streched and compressed
  • bend radius = outer diameter
  • air- and watertight
  • good resistance to oil, alkalis and acids
  • good chemical resistance
  • generally good UV and ozone resistance
  • meets system of protection IP68, acc. EN 60 529
  • RoHS compliant
Chemical Resistance

Recommended Connecting Elements:


Index Number: 8.6

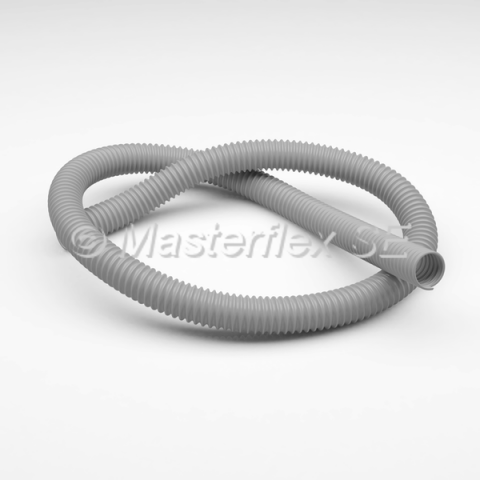

Product Description

PVC protection and suction hose with plastic coated wire spiral

Material

hose wall: soft PVC

spiral: spring steel wire, plastic coated

Temperature Range

  • -20°C up to +70°C
  • intermittent to +80°C

Construction

  1. spring steel spiral plastic coated
  2. hose wall: soft pvc with wall thickness from 0.3 - 1.2 mm according to DN
