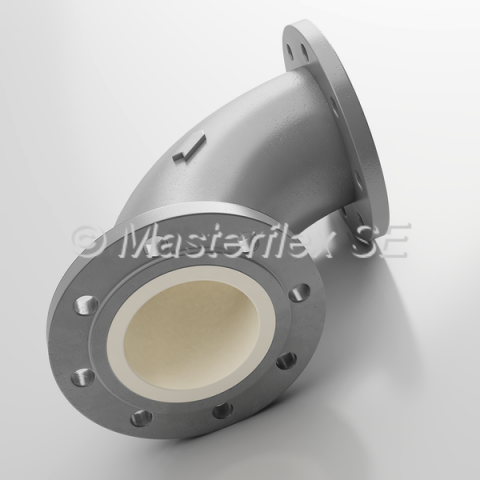

Master-PROTECT tube bend
![](http://masterflex.asia/sites/default/files/imagecache/product_full/productimg/master-protect_pipe-bend.png)
Application
- conveyor plants
Properties
- extremely abrasion resistant
- significant lower pressure losses as in deviation pots
- reduced risk of blockage through an even concentration and more consistent speed of the material
- more abrasion resistant than steel bends
- lower cost by higher service live
- no residue
- pressure level PN 6 and PN 10/16
Index Number:
24.1
Product Description
PU coated tube bend
Material
Bend: DIN 2448 St 37 (primed)
Flange: RSt 37 - 2 (primed)
Coating: polyurethane
Temperature Range
- -40°C up to +80°C
- intermittent to +110°C
![](/sites/default/files/screen_shot_2013-04-09_at_pm_05.52.12.png)
Construction
- tube bend
- polyurethane surface
- DIN flange connection
