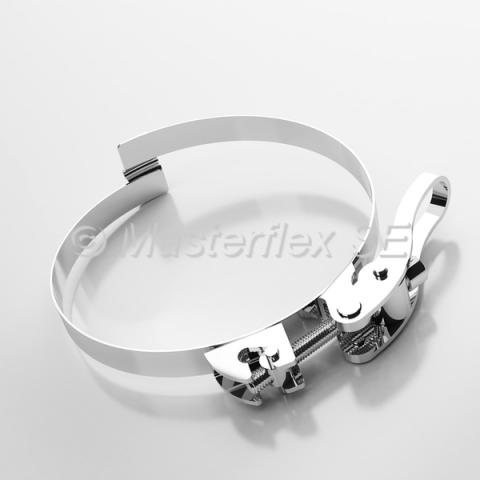

Clip-Grip quick action clamp

Application

  • special hose clamp for securing all types of hoses from the Master-Clip series on mobile and stationary units

Properties

  • non rusting
  • very easy to install
  • robust
  • nearly leak proof connection due to bridge profile
  • also subsequent rapid assembly with already installed hoses possible
  • non standard adjustment of the stress by tightening screw possible

Index Number: 21.2

Product Description

Special hose clamp for Master-Clip hoses

Material

clamp band,bridge and lock: stainless steel 1.4301

Construction

  • hose clamp with a high speed snap fastener
  • tightening screw with female hexagon
  • lock bolts unhingeable
  • with one spot welded bridge, from DN 320 two bridges

Clamping range

75/82 - 500/507 mm
