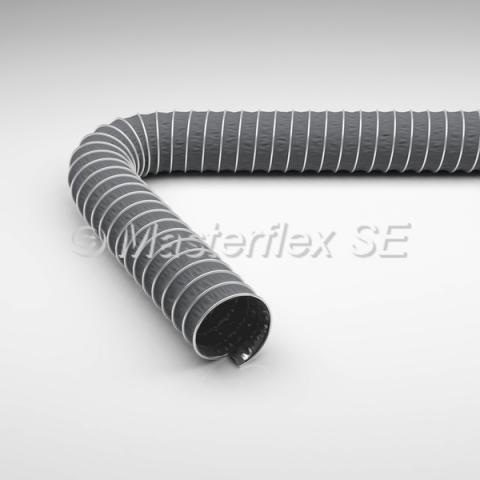

Master-Clip TEFLON® S-EL
Application
- endangered areas, where electrical conductivity is demanded
- extraction of corrosive gases and fumes in endangered areas
- chemical plants
- paint mist extraction
- paint, wood and paper industries
- extraction of solvents
- pharmaceutical industry
- low pressure applications
Properties
- excellent chemical resistance
- PTFE film: surface resistivity RO < 106 Ohm
- heat and cold resistant
- excellent weather resistance
- highly flexible
- compressible ca. 1:4
- small bend radius
- outer hose wall of robust material
- inner hose wall with non stick surface
- optimum flow characteristics
- external steel helix protects against abrasion
- clamping method guarantees tensile strength between hose material and external helix
- acc. to TRBS 2153 (zone 0, 20) suitable for combustible dusts and gases. Clip ends shall be earthed at both sides, helix pitch shall be < 30 mm and hose shall be connected to static dissipative socket to ensure static dissipation (see register no. 28.12)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
14.8
Product Description
Suction and blower hose for corrosive media up to +250 °C, electr. conductive < 106 Ohm
Material
hose wall: inner layer: PTFE film, electrically conductive, outer layer: silicone coated glass fabric
external helix: galvanised steel
Temperature Range
- -70°C up to +250°C
- intermittent to +270°C
Construction
- external helix
- outer layer: silicone coated glass fabric
- inner layer: PTFE film, electrically conductive < 106 Ohm
