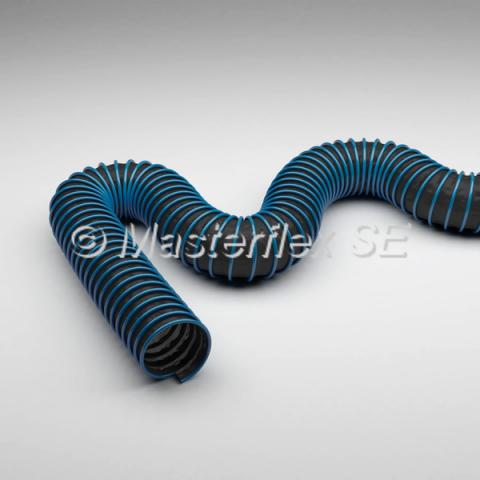

Carflex 200
Application
- medium duty exhaust gas extraction from petrol or diesel engines
- exhaust gas extraction of engine exhaust gases up to +200 °C, when exhaust gas funnels are used properly and fresh air is feed enough (approx. 50%)
- all normal exhaust extraction systems such as: hose reel slotted channels abovefloor and underfloor suction extraction stationary suction extractions
Properties
- vibrationproof
- good flow characteristics
- extremely flexible
- compressibility ca. 1:5
- small bend radius
- super lightweight
- robust
- special clamping method guarantees high tensile strength between hose material and external helix
- acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
11.2
Product Description
Exhaust gas hose for exhaust gas temperatures up to +200 °C*
*when exhaust gas funnels are used properly and fresh air is feed enough (approx. 50%)
Material
hose wall: neoprene coated polyester fabric
external helix: galvanised steel with additional plastic abrasion protector
Construction
- external helix
- additional abrasion protector
- hose wall: neoprene coated polyester fabric
