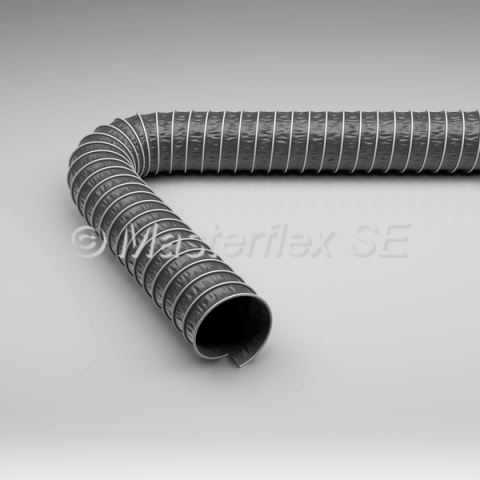

Master-Clip VINYL

Application

  • air conditioning/ventilation
  • exhaust equipment
  • suction and extraction of air
  • low pressure applications

Properties

  • robust and inexpensive
  • highly flexible
  • extremely compressible ca. 1:6
  • small bend radius
  • external steel helix protects against abrasion
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
Chemical Resistance

Recommended Connecting Elements:


Index Number: 10.1

Product Description

Suction and blower hose made from PVC film

Material

hose wall: PVC film

external helix: galvanised steel

Temperature Range

  • -20°C up to +70°C
  • Intermittent to +80°C

Construction

  1. external helix
  2. hose wall: PVC film
