Master-Clip VINYL B
Application
- air conditioning/ventilation
- suction plants
- ducting and extraction of air
- in areas with raised safety requirements
- tent heating
- weld fume extraction
- low pressure applications
Properties
- hardly inflammable
- good resistance to mechanical damage
- robust and inexpensive
- lightweight
- highly flexible
- extremely compressible ca. 1:6
- small bend radius
- external steel helix protects against abrasion
- special clamping method guarantees high tensile strength between hose material and external helix
- acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
10.4

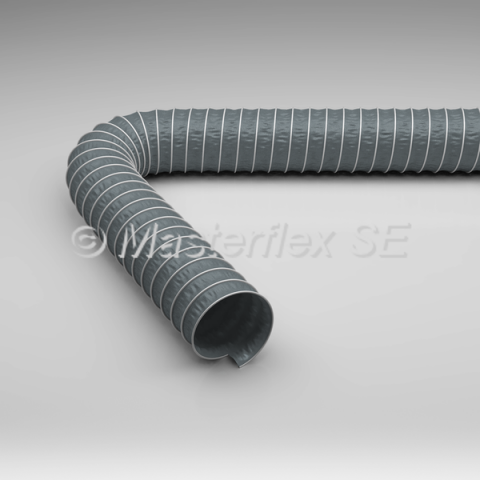

Product Description
suction and blower hose made from PVC coated polyester fabric, hardly inflammable
Material
hose wall: PVC coated polyester fabric, hardly inflammable
external helix: galvanised steel
Temperature Range
- -20°C up to +70°C
- intermittent to +80°C
Construction
- external helix
- hose wall: PVC coated polyester fabric, hardly inflammable
