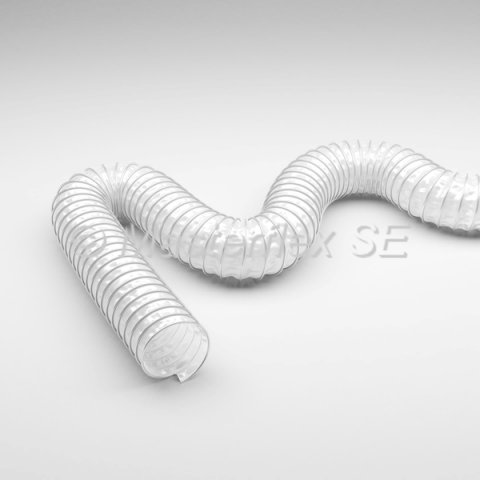

Master-Clip PUR
Application
- air conditioning/ventilation
- extraction of abrasive media
- low pressure applications
Properties
- highly abrasion resistant
- good resistance to mechanical damage
- good resistance to oil and petrol vapours
- highly resilient
- resitant to ageing
- resistant to low temperatures
- very flexible
- extremely compressible ca. 1:6
- small bend radius
- external steel helix protects against abrasion environmentally sound alternative to PVC
- much higher temperature rating than PVC hoses
- special clamping method guarantees high tensile strength between hose material and external helix
- acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
10.6
Product Description
suction and blower hose made from PU film, highly abrasion resistant
Material
hose wall: polyurethane film, free from plasticizers
external helix: galvanised steel
Temperature Range
- -40°C up to +90°C
- intermittent to +125°C
Construction
- external helix
- hose wall: polyurethane film, wall thickness ca. 0.3mm
