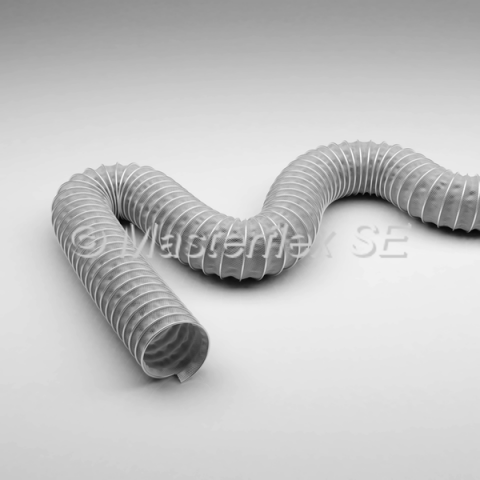

Master-Clip HT 400

Application

  • primary suitable as extraction hose
  • hot air
  • suction plants
  • furnace construction
  • iron and steel works
  • engine construction
  • radiant heat protection
  • low pressure applications
  • flue gas exhaust
  • only conditionally suitable for exhaust fume extraction

Properties

  • very high temperature resistance
  • silicone free
  • highly flexible
  • extremely compressible ca. 1:6
  • small bend radius
  • improved vacuum resistance by woven in reinforcement
  • external steel helix protects against abrasion
  • only conditionally suitable for continual flexing
  • special clamping method guarantees high tensile strength between hose material and external helix
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
  • RoHS compliant
Chemical Resistance

Recommended Connecting Elements:


Index Number: 12.9

Product Description

Medium and high temperature hose for temperatures up to +400 °C

Material

hose wall: special coated high temperature fabric, reinforced by woven in stainless steel wire

external helix: galvanised steel

Temperature Range

  • -20°C up to +400°C
  • intermittent to +450°C

Construction

  1. external helix
  2. hose wall: special coated high temperature fabric, reinforced by woven in stainless steel wire
