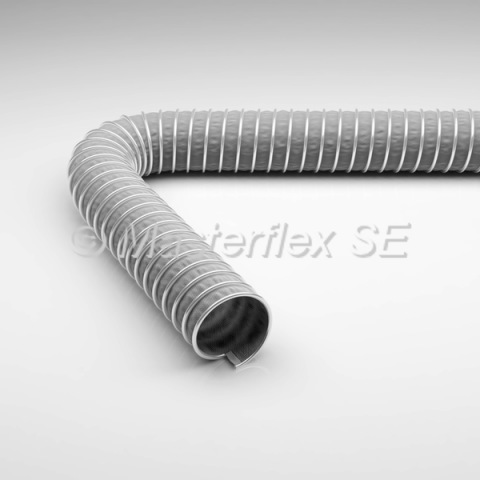

Master-Clip HT 650
Application
- exhaust fume extraction from performance test beds in the motor vehicle industries
- flue gas exhaust
- vehicle and engine construction
- suction plants
- shipbuilding industries
- aircraft and defence industries
- general engineering
- furnace construction
- iron and steel works
- infrared dryer plants
- radiant heat protection
Properties
- very high temperature resistance
- flame retardant and non flammable
- improved vibration resistance by woven in reinforcement
- flexible
- axial compressible
- small bend radius
- conditionally suitable for continuall flexing
- good vacuum resistance
- silicone free
- external steel helix protects against abrasion
- special clamping method guarantees high tensile strength between hose material and external helix
- acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
12.13
Product Description
Medium and high temperature hose for temperatures up to +650 °C, two layers
Material
hose wall: two layer construction, inner and outer hose wall high temperature fabric, especially coated with heat stabilizers, reinforced by woven in stainless steel wire
external helix: galvanised steel
Temperature Range
- -20°C up to +650°C
- intermittent to +750°C
Construction
- external helix
- hose wall: two layer, reinforced high temperature fabric
