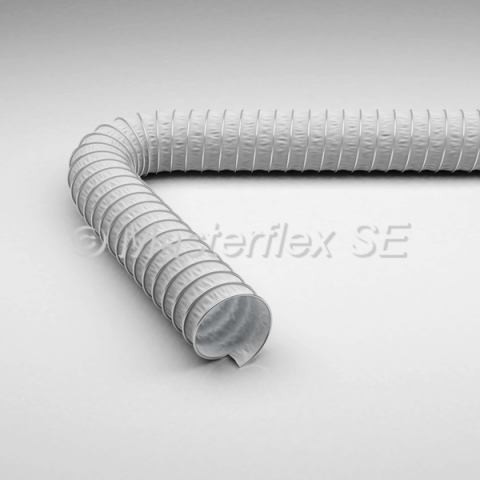

Master-Clip ISO-SILICON
Application
- hot air
- suction plants with improved extraction capacity
- vehicle construction
- engine construction
- aircraft industries
- defence industries
- general engineering
- low pressure applications
Properties
- very high temperature resistance
- hardly inflammable
- very flexible
- extremely compressible ca. 1:4
- small bend radius
- good vacuum resistance
- conditionally vibrationproof
- external steel helix protects against abrasion
- special clamping method guarantees high tensile strength between hose material and external helix
- acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts and gases of low conductivity. Clip ends shall be earthed at both sides and helix pitch shall be < 30 mm to ensure static dissipation (see register no. 28.12)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
12.5
Product Description
Medium and high temperature hose for temperatures up to +300 °C, two layers
Material
hose wall: two layer construction, inner hose wall heat resistant impregnated glass fabric and outer hose wall silicone coated glass fabric
external helix: galvanised steel
Temperature Range
- -60°C up to +300°C
- intermittent to +330°C
Construction
- external helix hose wall:
- outside: silicone coated glass fabric
- inside: heat resistant impregnated glass fabric
