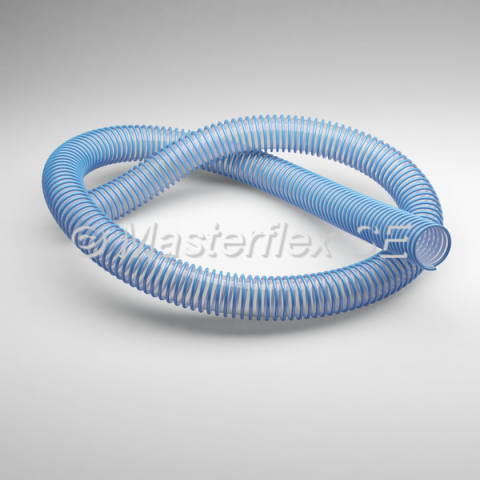

Master-PUR STEP
Application
- deally suitable as suction hose where conventional hoses can be deformated by bad operating conditions on the floor
- woodworking industry
- protection hose
- transport and suction hose for solid, liquid and gaseous media
Properties
- crush resistant and recoverable
- excellent resilience properties
- from DN 60 hardly inflammable acc. to DIN 4102 B1
- high resistance to mechanical load
- abrasion resistant
- super lightweight
- very flexible
- generally good UV- and ozone resistance
- optimum flow characteristics
- acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts/bulk goods and gases/liquids of low conductivity. Static wire shall be earthed at both sides to ensure static dissipation
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
7.1
Product Description
PU film hose, crush resistant, hardly inflammable acc. to DIN 4102 B1
Material
hose wall: polyester polyurethane with addition of flame protector (in comparison with polyether polyurethane more abrasion resistant, acc. to DIN 53516) with integrated wire
spiral: polyurethane, hardly inflammable
Temperature Range
- -40°C up to +90°C
- intermittent to +125°C
Construction
- crush resistant hollow profil spiral
- hose wall: polyester polyurethane
- wire
