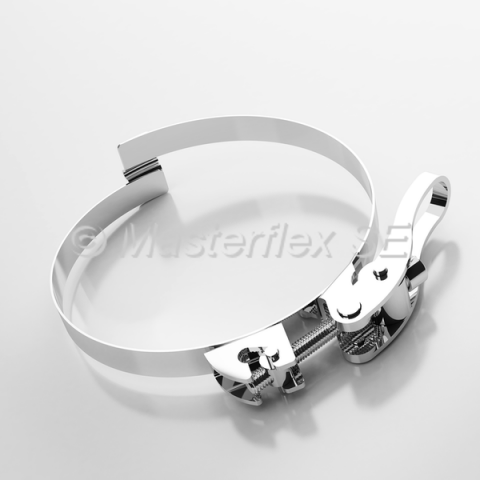

Car-Grip Quick Action Clamp
Application
- special clamp for securing Carflex Super and Master-PUR Step hoses on mobile and stationary units
Properties
- non rusting
- very easy to install
- robust
- nearly leak proof and tensile strength connection due to bridge profiles
- also subsequent rapid assembly with already installed hoses possible
- non standard adjustment of the stress by tightening screw possible
- RoHS compliant
Index Number:
21.4
Product Description
for Carflex Super and Master-PUR STEP
Material
clamp band, bridge, lock: stainless steel (1.4301)
Construction
- Hose clamp with a high speed fastener
- tightening screw with female hexagon
- lock bolts unhingeable
- with one spot welded brigde, from DN 320 with 2 bridges
Clamping range:
75/82 - 250/257 mm
