Master-PUR STEP
Application
- ideally suitable as suction hose where conventional hoses can be deformated by bad operating conditions on the floor
- woodworking industry
- protection hose
- suction and transport hose for solid, liquid and gaseous media
Properties
- crush resistant and recoverable
- excellent resilience proper ties
- hardly inflammable acc. to DIN 4102 B1
- high resistance to mechanical load
- highly abrasion resistant
- super lightweight
- highly flexible
- generally good UV and ozone resistance (see register no. 28.7.7)
- optimum flow characteristics
- acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts/bulk goods and gases/liquids of low conductivity. Static wire shall be earthed at both sides to ensure static dissipation (see register no. 28.12)
- RoHS compliant
Chemical Resistance
Recommended Connecting Elements:
Index Number:
2.6
Product Description

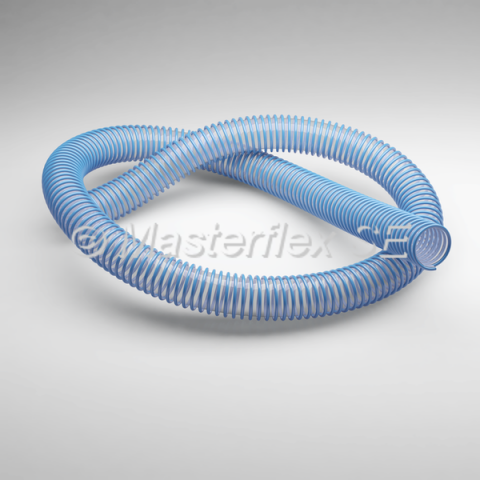

PU film hose, crush resistant, hardly inflammable acc. to DIN 4102 B1
Material
hose wall: 100% polyester polyurethane with addition of flame protector (in comparison with polyether polyurethane more abrasion resistant, acc. to DIN 53 516) with integrated wire.
spiral: polyurethane, hardly inflammable
Temperature Range
- -40°C up to +90°C
- intermittent to +125°C
Construction
- crush resistant hollow profile spiral
- hose wall: polyurethane
- stet
