Master-PVC H

Application

  • suction and transport hose for solids, gaseous and liquid media
  • transport of small dust particles and powders
  • oilspray extraction
  • air condition/ventilation
  • protection hose
  • liquid drainage

Properties

  • good resistance to oil, alkalis and acids
  • good chemical resistance
  • nearly smooth inside
  • optimum flow characteristics
  • extremely flexible
  • lightweight
  • small bend radius
  • gas tight
  • acc. to TRBS 2153 (zone 1, 21) suitable for non-combustible dusts/bulk goods and gases/liquids of low conductivity. Spiral ends shall be earthed at both sides to ensure static dissipation (see register no. 28.12)
Chemical Resistance

Recommended Connecting Elements:


Index Number: 8.4

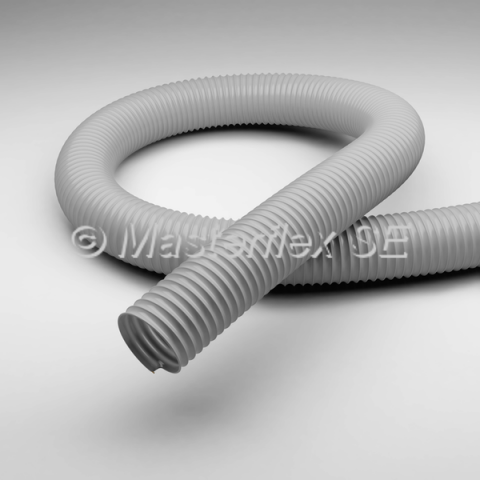

Product Description

PVC suction and transport hose, medium weight

Material

hose wall: soft PVC

spiral: spring steel wire

Temperature Range

  • -20°C up to +70°C
  • intermittent to +80°C

Construction

  1. immovable cast spring steel spiral
  2. hose wall: soft pvc
  3. wall thickness between spirals ca. 1.4 mm
